HP1500

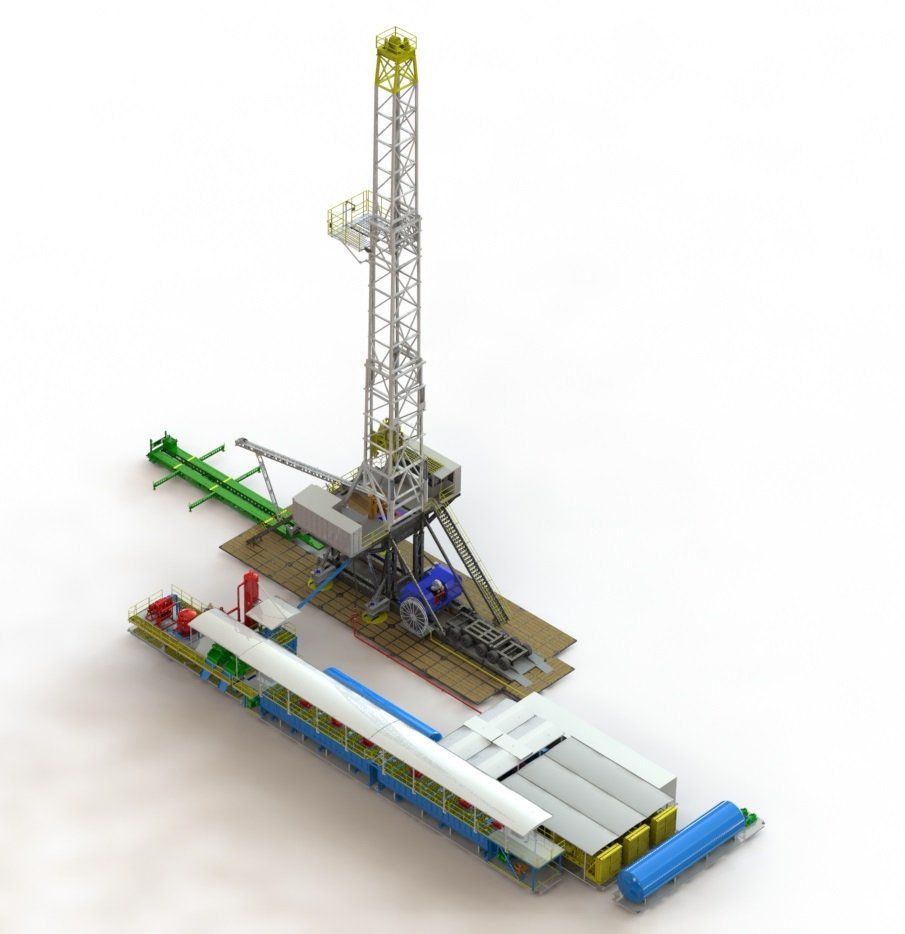

DRILLING STRUCTURE - 1500 HP

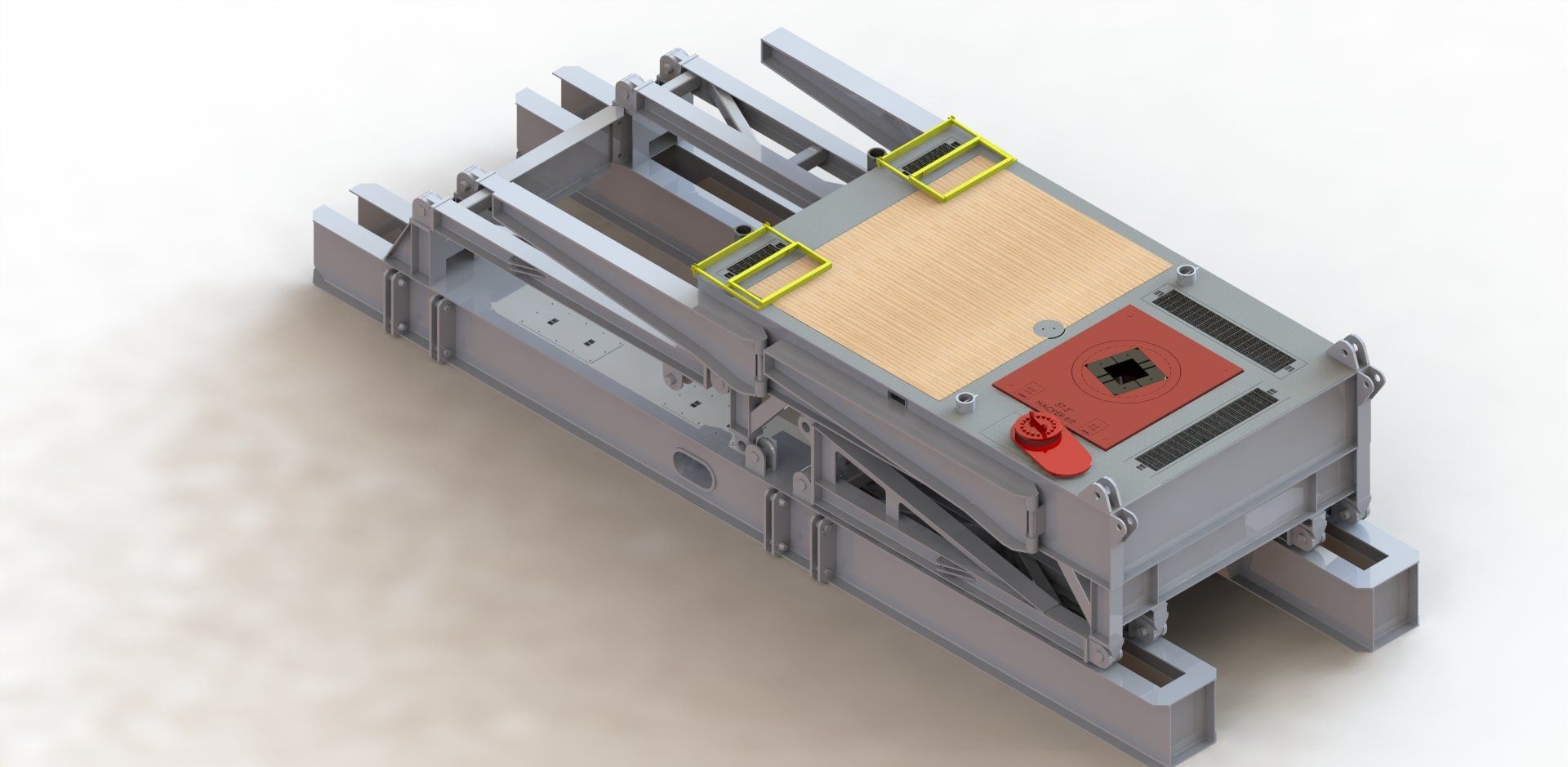

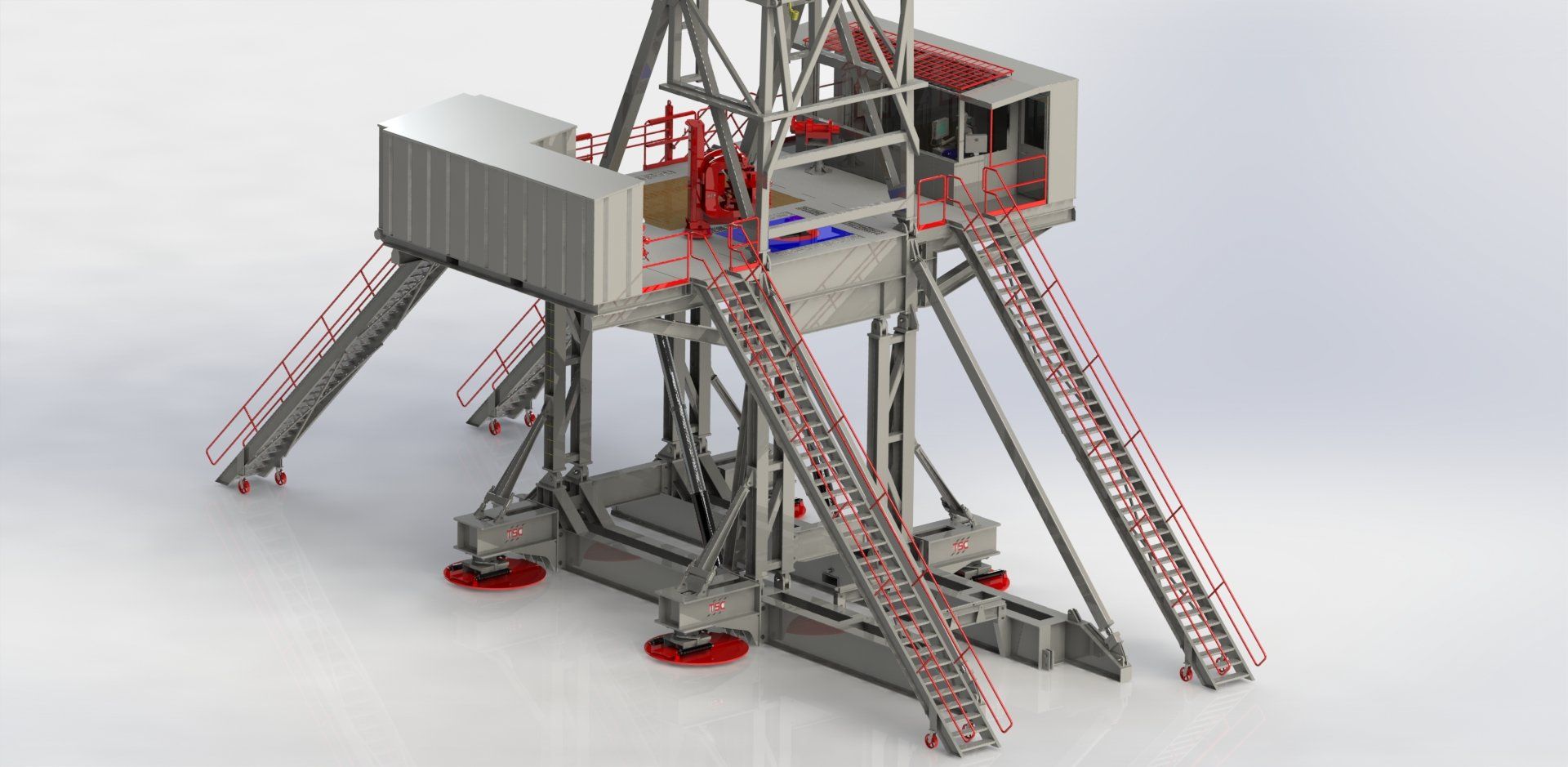

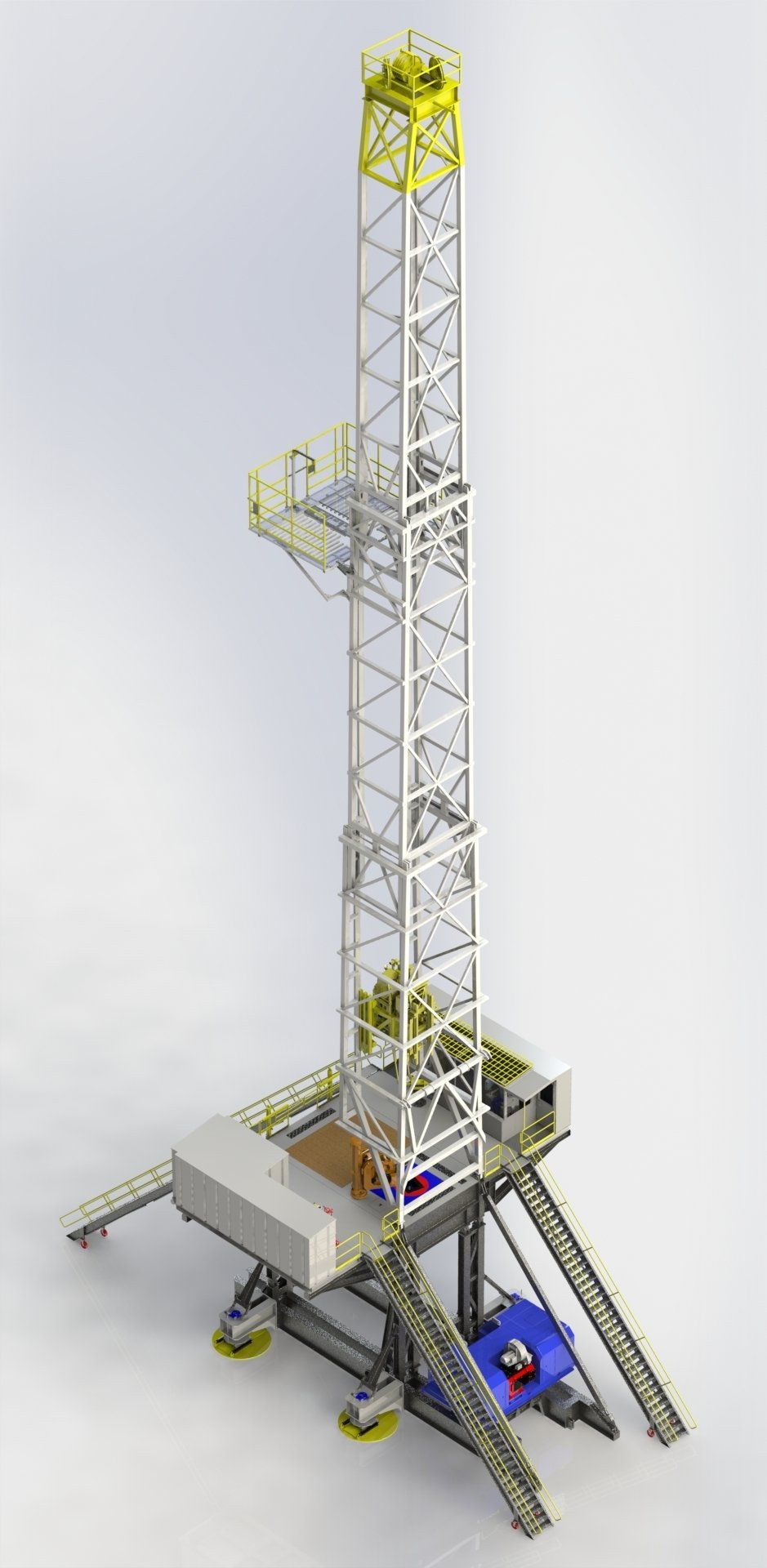

Single load mast and substructure with integrated walking system reduces costs due to transportation loads both in-field and out. Substructure rigs up hydraulically with a radio remote belly pack. Mast raises hydraulically and scopes vertically using integrated winches. Multiple mast options available.
Rig specification – 1500 hp drilling structure
  1. Drawworks rating: 1500 hp
  2. Drill line diameter: 1-3/8”
  3. Static hook load: 750,000 lbs
  4. Set back capacity: 500,000 lbs
  5. Racking capacity: 19,500 feet of 5” dp triples
  6. Rotary load: 500,000 lbs
  7. Combines hook, rotary, and setback load: 1,250,000 lbs
  8. Mast clearance height: 143 ft
  9. Rig floor height: 26 ft
  10. Clear working height beneath rig floor: 22.5 ft

• Mast, crown, and substructure complies with API 4F
• Crown sheave assembly complies with API 8A
• Travelling block complies with API 8A
• Rotary table complies with API 7K
• Designed 0°F to 104°F ambient
